Mahlo at ITMA Asia with smart solutions for textile finishing

Mahlo to showcase ORTHOPAC RVMC-15 combination straightener at the ITMA Asia. Picture 2018 by Stamperia Pezzoli
When Asia's most important textile machinery trade fair opens its doors from 15 October to 19 October, the world market leader in automatic straightening and process control, Mahlo GmbH + Co. KG, will of course be there. This is why the German machine manufacturer will be presenting its latest developments in the field of straightening and controlling with the product web running at booth H6 D13. The focus will always be on the current, predominant topics in the industry: Networking and sustainability.

The automatic straightening technology is Mahlo's flagship in the textile sector; the principle of detecting and automatically correcting distortions in the fabric by means of scanning originates from the German think tank and it is still the basis of all modern automatic straightening systems today. “With our Generation 15 machines, we have paired over 70 years of experience with state-of-the-art technology and again set standards in textile production and finishing,” says Sales Manager Thomas Höpfl. Together with the Mahlo sales team and the experienced sales representative Shanghai Kuantex, he will be presenting a continuous transport model with an ORTHOPAC RVMC-15 combination straightener at the ITMA Asia.

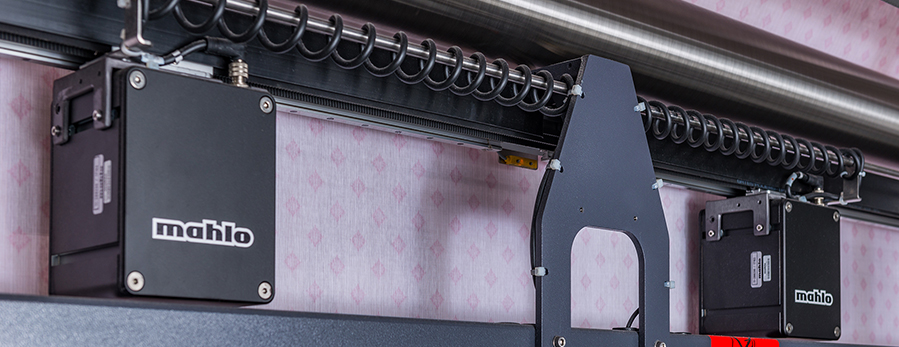

Optoelectronic scanning for distortion detection using an oscillating lens and DSP (digital signal processor) is probably the most sensitive and versatile system on the market. Arranged on a carrier bridge, several of these sensors – evenly distributed across the width – simultaneously detect the position of the weft thread at different points. The scanning system detects and analyses the angle position of the weft threads, courses or rows of tufting. An intelligent control algorithm with a self-optimisation function, together with the hydraulic or electric roller positioning adapted to it, ensures that all web distortions are reliably removed. Even the most complicated product structures pose no problem. Scanning systems for special product structures are available as an alternative to standard scanning. Scanning and distortion correction of patterned products (lace, jacquard, print, terry cloth) is easily possible as well.

The expert audience at ITMA Asia will also be able to learn about a new method for the online control of the number of weft threads/course count, which can also be used to determine and even out the basis weight. The FAMACONT PMC-15 measures the thread or knit density by means of a sensor and compares it with the nominal value stored in the recipe data management. The detected deviation of the thread density from the nominal value is used to fully automatically regulate the over-feed during the pinning process on the tenter. The so-called feed-forward control ensures a constant thread/course density and a uniform basis weight. This factor is particularly important for knitwear manufacturers since their product is sold by weight and must meet customer specifications exactly.

Networking and sustainability are more in demand than ever before With its new Generation 15 machines, Mahlo is also responding to customers' demand for increased connectivity in their machines. Mahlo straighteners, sensors and control loops are just a mouse click away from the individual data of existing machines. “If customers use suitable sensor technology and the appropriate networking, they can access the machine from anywhere, provided that an Internet connection is available. Customers also have the option of connecting any machine to the network via an OPC UA server with suitable connectivity,” explains Höpfl.


The Generation 15 machine features cross-platform visualisation. The user interface can be adapted to the individual requirements of the operating personnel with just a few clicks. A large number of operating pages can be individually defined and provide the operating personnel with a complete overview of all the process parameters without having to constantly scroll through the menus. Visualisation can also be used as an information centre to visualise and monitor several Mahlo devices. The data generated is stored in databases and can be summarised in adapted protocols and output via suitable interfaces.

Another item that is becoming more and more important for textile manufacturers is sustainability in production. By using process control systems like those offered by Mahlo, critical parameters, such as weight, residual moisture, dwell time or humidity, can be measured and controlled. This means that the product meets the requirements right from the start and the manufacturer wastes neither raw materials nor energy. At booth H6 D13, the Mahlo team will be happy to explain exactly which systems fit which customer requirements.

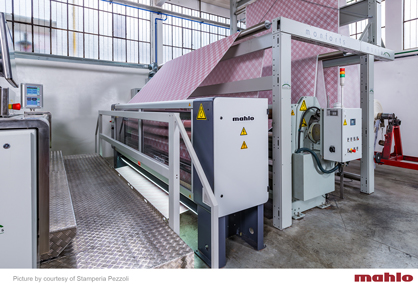

RVMC-15 by Mahlo.<br />
Picture 2018 by Stamperia Pezzoli
RVMC-15 by Mahlo.
Picture 2018 by Stamperia Pezzoli
