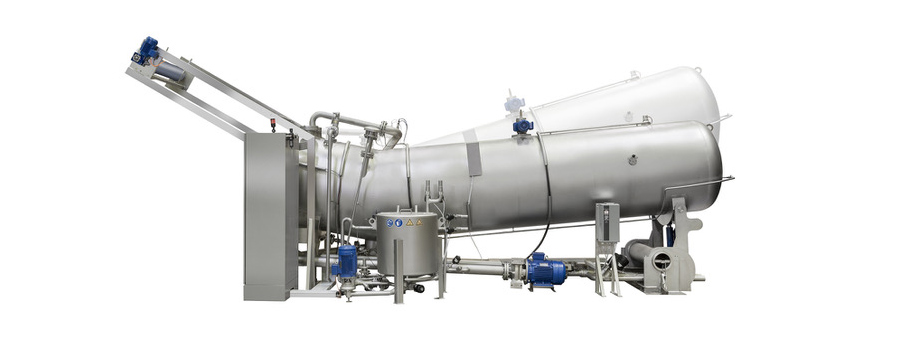

The THEN Supratec LTM is designed in a long tube shape, with its Flexkier lifting device and winchless fabric transport providing efficient and high-quality dyeing results, while minimising water and energy consumption with liquor ratios of from 1:15 down to just 1:4.

It features a number of advanced patented technologies, such as a dry and wet mode by programable kier slope variation during the process, to provide an outstanding low liquor ratio system for long tube machines.

The machine can be delivered tailor made with one or two nozzles to achieve full filling with acceptable fast turn times. This helps to reduce the amount of water and energy needed for the dyeing process while also reducing the overall processing time.

The Supratec LTM is suitable for the treatment of both woven and knitted fabrics ranging from the most sensitive articles to medium-weight materials within the weight range of 25 grams per linear metre (g/lm) to 600 g/lm, and operates at very low tension due to the extremely low lifting height between the variable nozzle and the plaited fabric.

Cost savings

Heat-setting can often be avoided, which improves the handle of the material and saves costs, and the lengthwise-elongation of the fabric being treated is lower than on winch-driven machines. Each kier has a capacity of up to 200kg, again depending on the fabric being treated, and operating speeds are from 80 up to 600 metres a minute.

The Supratec is also equipped with a range of features to ensure the safety of the machine operator and to prevent damage to the fabric being dyed. These include automatic dosing systems for chemicals and dyes, as well as sensors for monitoring the temperature, pressure and pH levels of the dyeing process.
